Grandville - Living on Upper – House Plans (E1138-10)





Standard
Plan

House Plan E1183-10 Exterior 3D View House Plan E1183-10  Main Floor Plan House Plan E1183-10 Upper Floor Plan House Plan E1183-10 Lower Floor Plan House Plan E1183-10 Rear 3D View House Plan E1183-10 Interior Kitchen 3D Area

Click thumbnails to see larger image below


House Plan E1183-10 Exterior 3D View
Plan in
Reverse

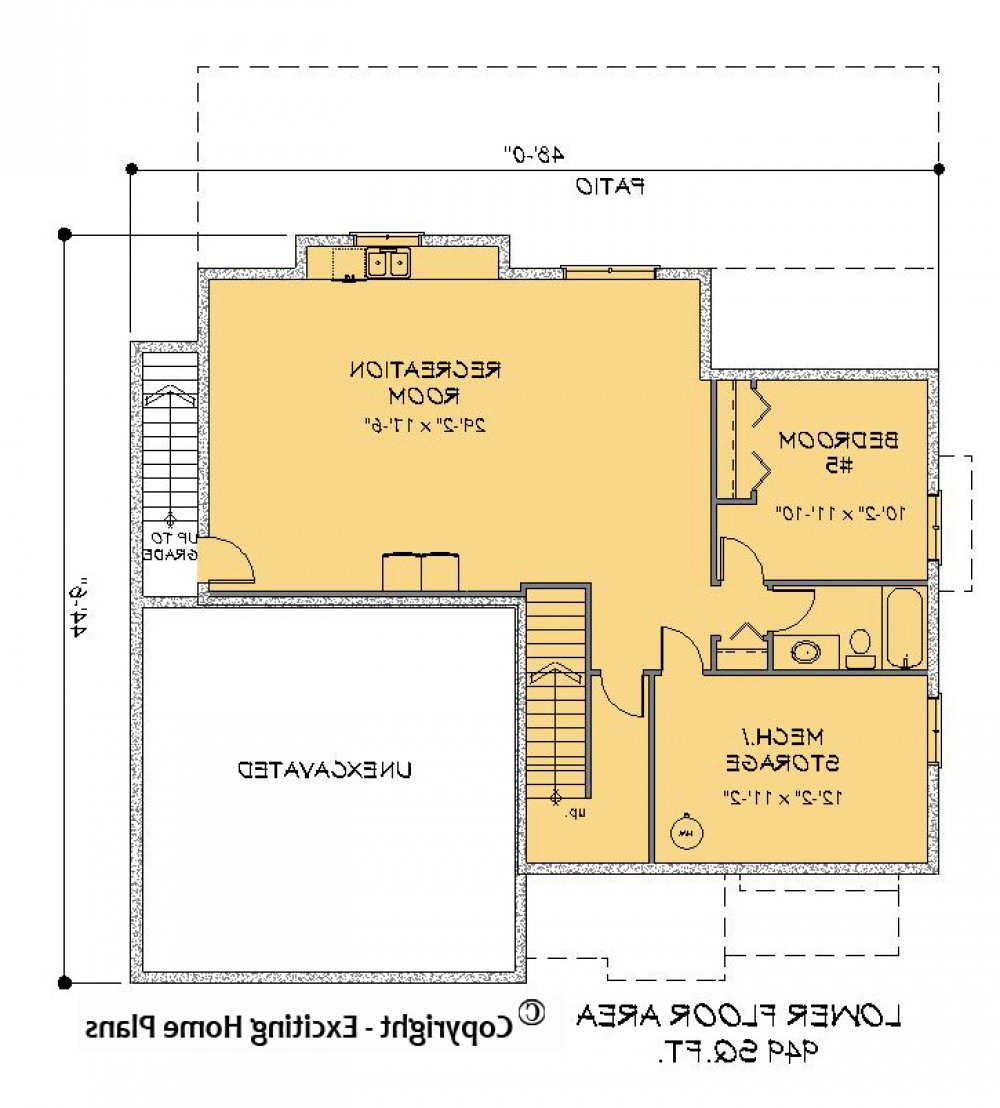

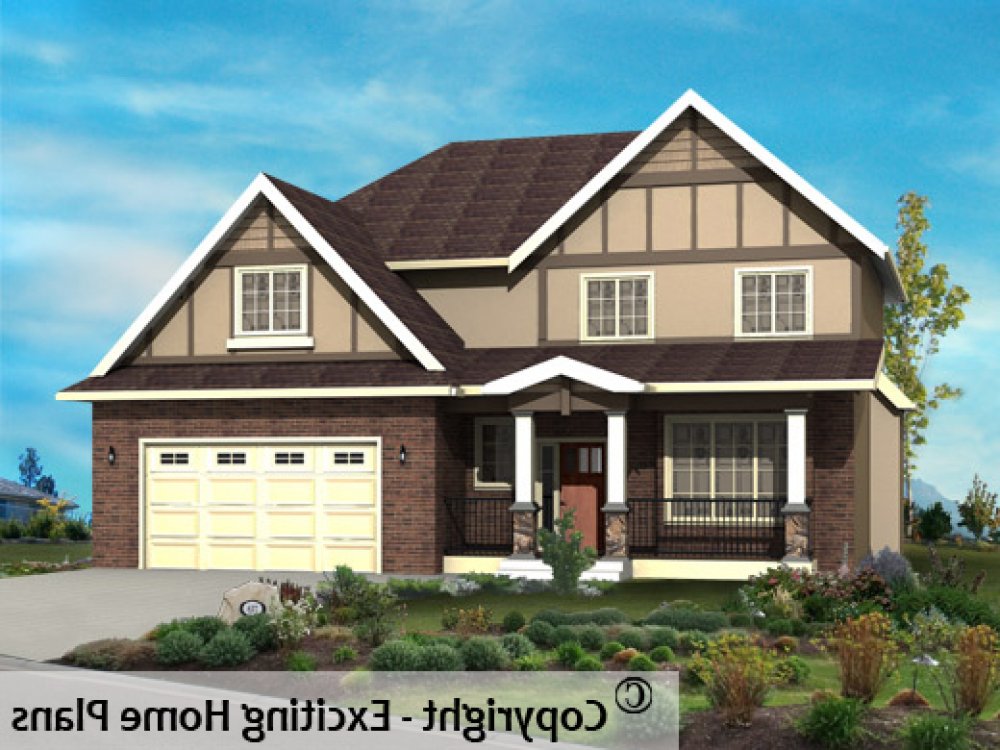

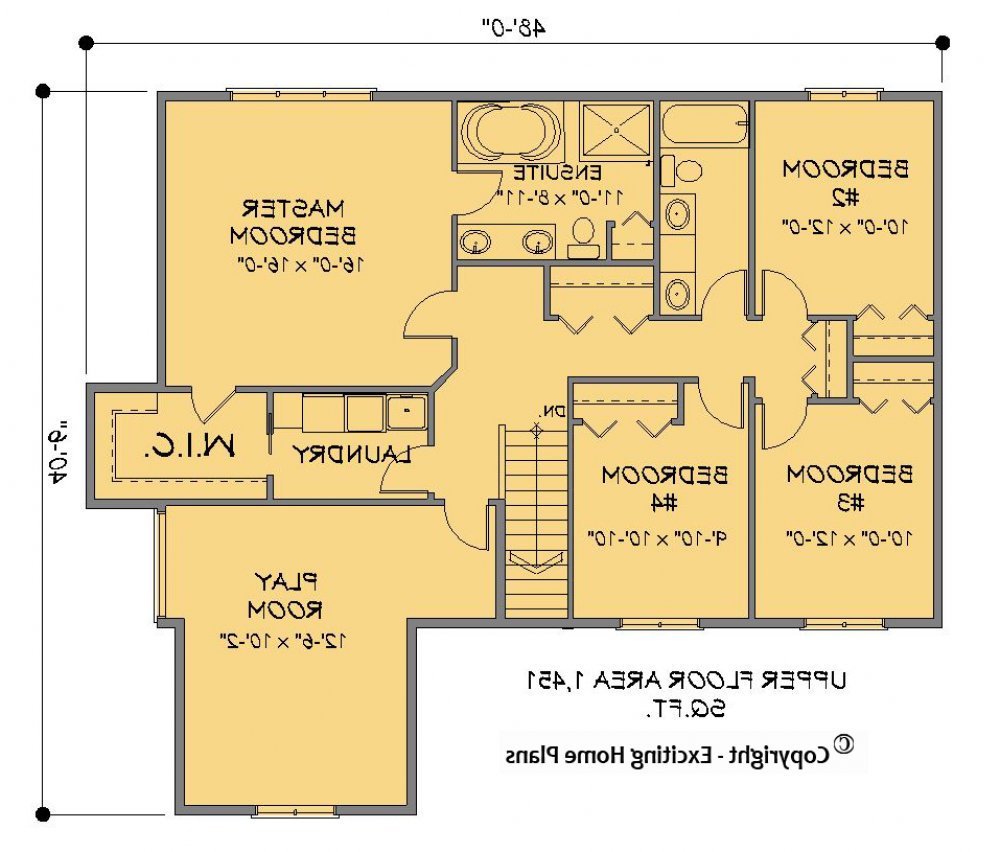

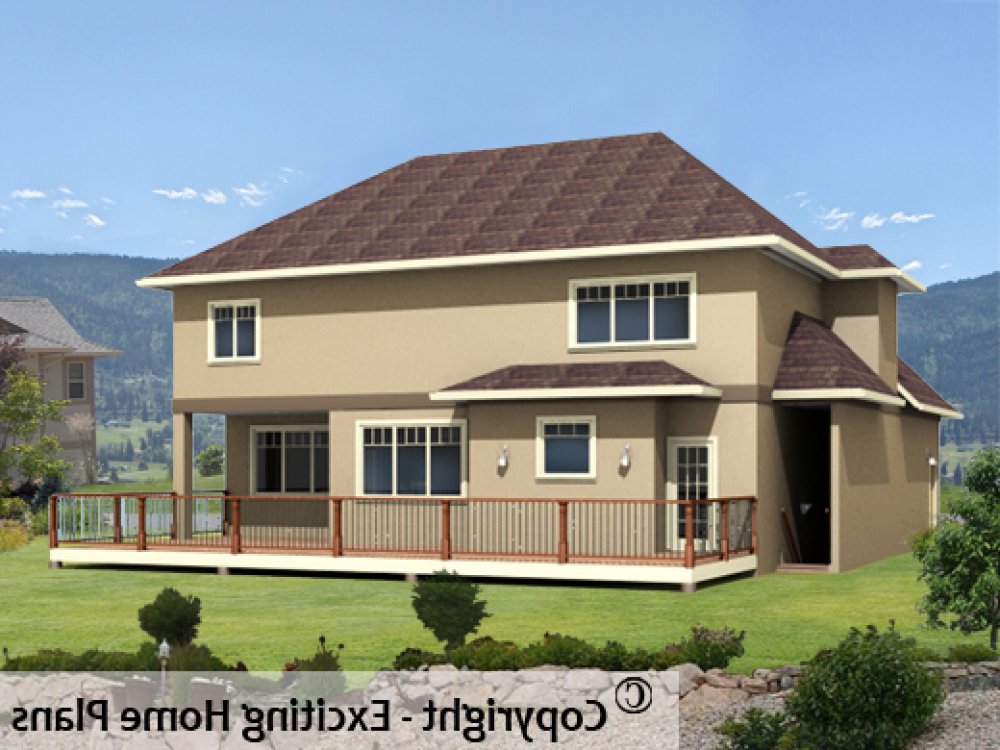

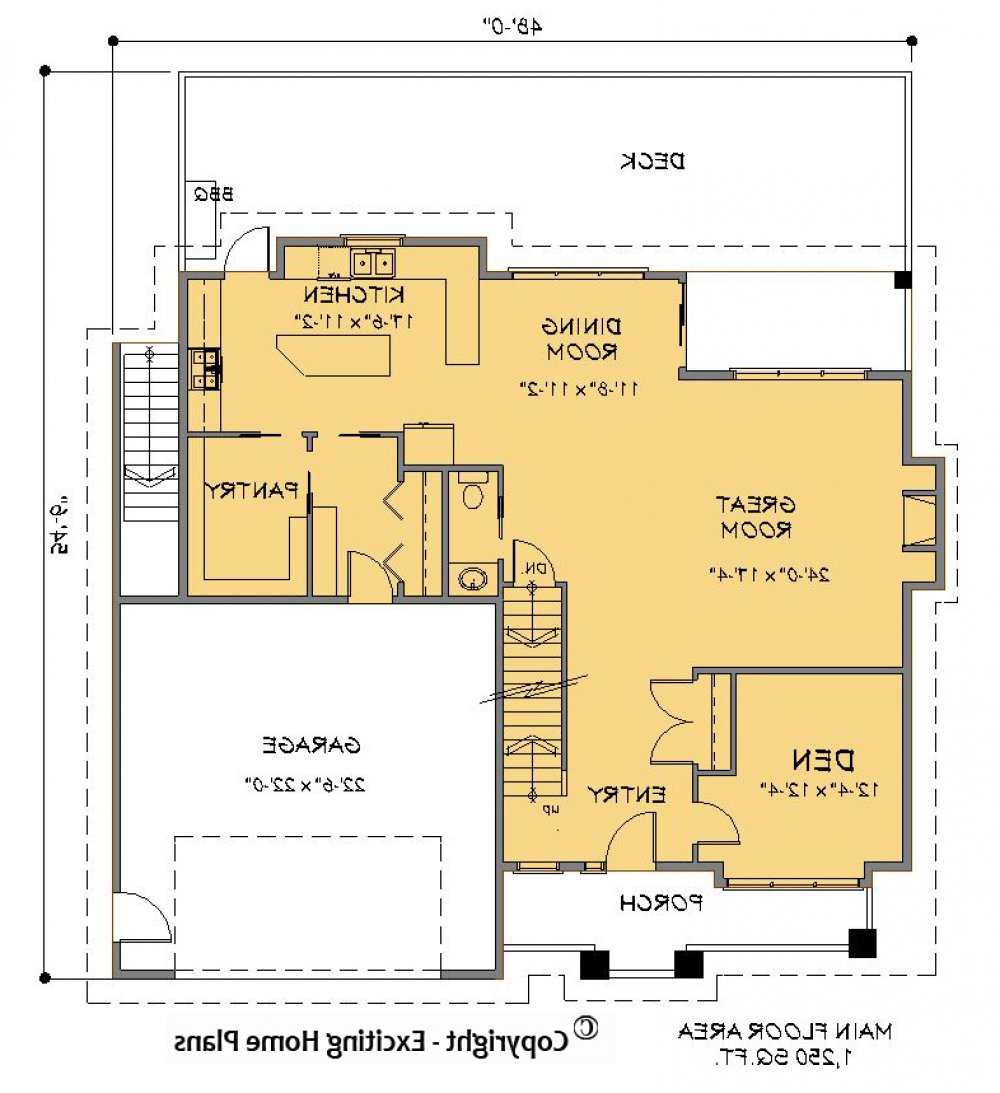

House Plan E1183-10 Exterior 3D View REVERSE House Plan E1183-10 Main Floor Plan REVERSE House Plan E1183-10 Upper Floor Plan REVERSE House Plan E1183-10 Lower Floor Plan REVERSE House Plan E1183-10 Rear 3D View REVERSE



ORDER THIS HOUSE PLAN   RELATED HOUSE PLANS

Floor Plan Details

  • Total Bedrooms:
  • 5
  • # of Bedrooms on Main Floor:
  • 3
  • Bathrooms:
  • 3
  • Main Floor Sq Ft:
  • 1175
  • Basement Sq Ft:
  • 952
  • House Width (Ft):
  • 38
  • House Depth (Ft):
  • 51

Room Details

  • Great Room:
  • 16'-10 X 12'-0 Main
  • Kitchen:
  • 13'-2 X 12'-0 Main
  • Dining Room:
  • 13'-8 X 8'-11 Main
  • Family Room:
  • 13'-8 X 16'-6 Basement
  • Den / Flex Room:
  • 10'-0 X 10'-0 Basement
  • Laundry:
  • 10'-0 X 5'-8 Basement
  • Utility / Storage Room:
  • 7'-8 X 8'-2 Basement
  • Deck / Patio 1:
  • 14'-4 X 9'-8
  • Master Bedroom:
  • 12'-6 X 10'-6 Main
  • Bedroom 2:
  • 9'-0 X 11'-6 Main
  • Bedroom 3:
  • 9'-10 x 10'-0 Main
  • Bedroom 4:
  • 10'-2 X 9'-6 Basement
  • Bedroom 5:
  • 10'-2 X 9'-8 Basement
  • All Bedrooms Have A Bathroom:
  • No
  • Master Bathroom:
  • 8'-10 X 5'-0 Main
  • Bathroom 2:
  • 8'-10 X 5'-0 Main
  • Bathroom 3:
  • 10'-2 X 5'-0 Basement

Kitchen Options

  • Eating Bar:
  • Yes
  • Access To Deck:
  • Yes
  • Pantry:
  • Yes
  • Open Plan:
  • Yes

Living Style Options

  • Great Room Concept / Open Plan:
  • Yes
  • Family Room On Main:
  • Yes

Interior Details

  • Great Living Room Fireplace:
  • Yes
  • Steam Room:
  • No
  • Skylight(s):
  • No
  • Hot Tub:
  • No
  • Sauna:
  • No

Master Bedroom Options

  • Pieces In Ensuite:
  • 3

Garage Options

  • Garage Size:
  • 19'-0 X 20'-0
  • Number of Vehicles:
  • 2
  • Front Load:
  • Yes

Ceiling Options

  • Main Floor Ceiling Height:
  • 9
  • Basement Ceiling Height:
  • 9
  • Vaulted:
  • 1

Lot Details

  • Flat Lot (Less Than 36" Slope):
  • Yes

Construction Details

  • Framing Lumber:
  • 2x6
  • Roof:
  • Asphalt
  • Foundation:
  • Slab on grade
  • Wall Finish:
  • Siding
  • Wall Finish:
  • Stone
  • Wall Finish:
  • Wood Shingle

Plan Permit Info

Plan Costs

  • Planbook 5 Print Sets 24x36 - ¼" Scale Copies:
  • $969.00

  • Planbook 8 Print Sets 24x36 - ¼" Scale Copies:
  • $1,089.00

  • Planbook purchase with PDF's:
  • $1,389.00
  • Extra 24x36 ¼" Scale Copies:
  • $40.00
  • Reverse Plan:
  • $299.00
  • Colour Rendering:
  • $79.00
  • 11" x 17" - 1/8" Scale Copy:
  • $20.00
  • Shipping within B.C.
  • $29.95
  • Shipping within Canada:
  • $50.00
  • Shipping to USA:
  • Please Ask For Quote
  • Shipping outside of North America:
  • Please Ask For Quote
  • Shipping Mounted Renderings:
  • Please Ask For Quote
