Ranchland - Bilevel Split - House Plans (E1179-10)


This unique Bilevel Split will keep anyone guessing about what lies inside.


Standard
Plan

House Plan E1179-10 Exterior 3D View House Plan E1179-10 Main Floor Plan House Plan E1179-10 Upper Floor Plan House Plan E1179-10 Lower Floor Plan House Plan E1179-10 Rear 3D View House Plan E1179-10 Interior Kitchen 3D Area

Click thumbnails to see larger image below


House Plan E1179-10 Exterior 3D View
Plan in
Reverse

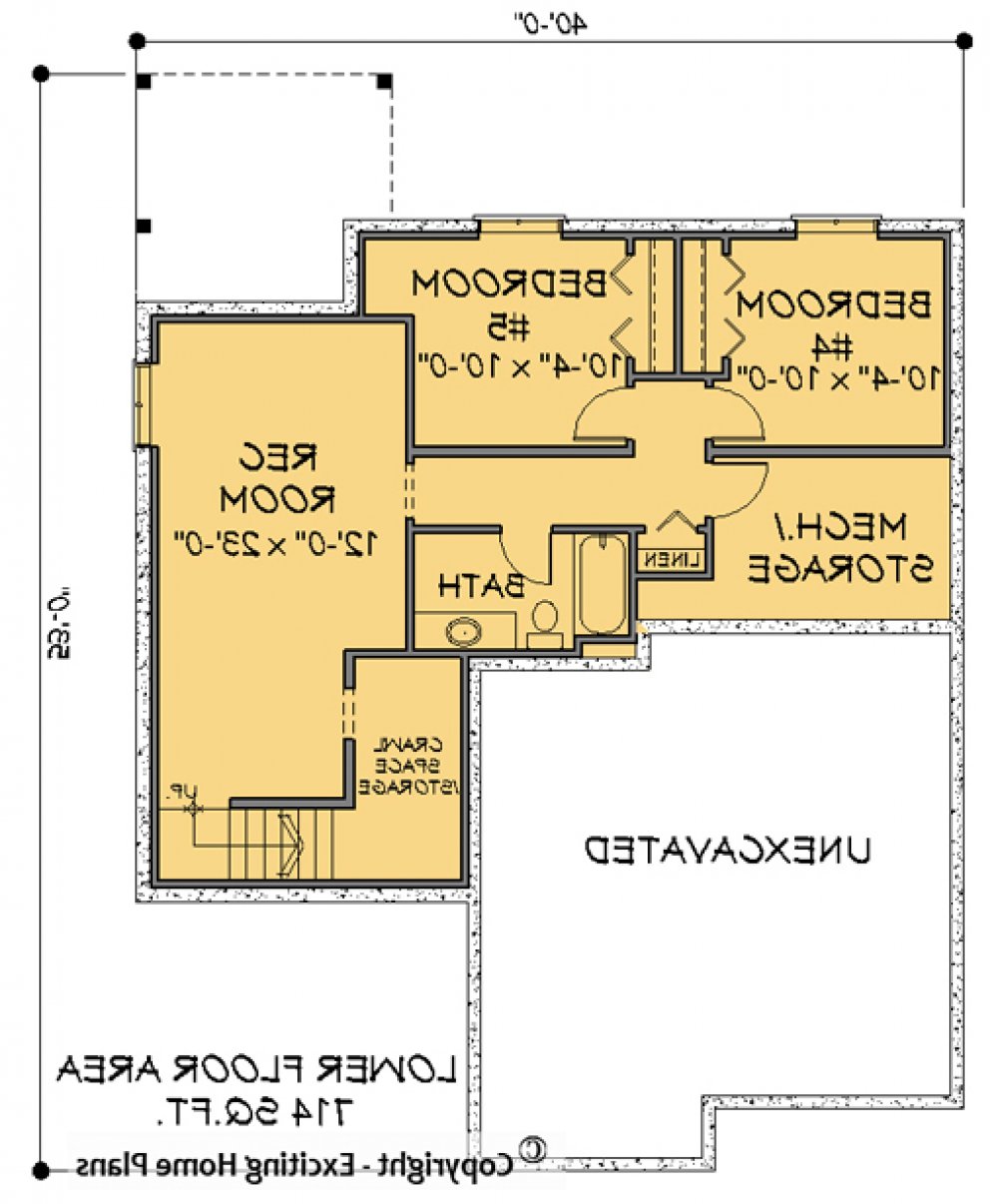

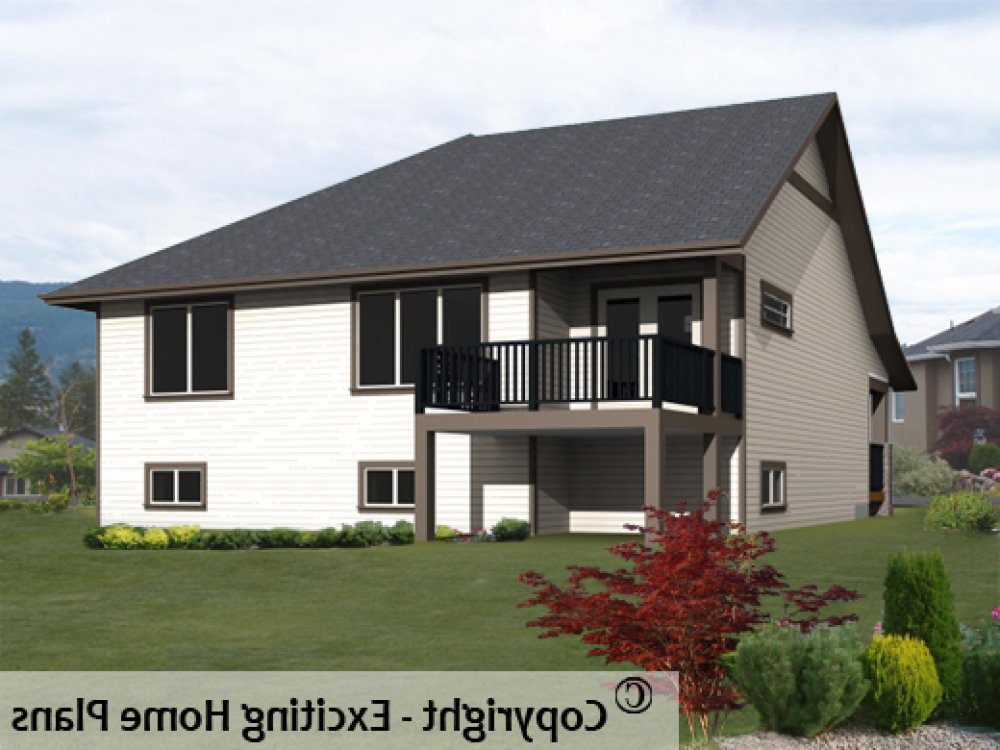

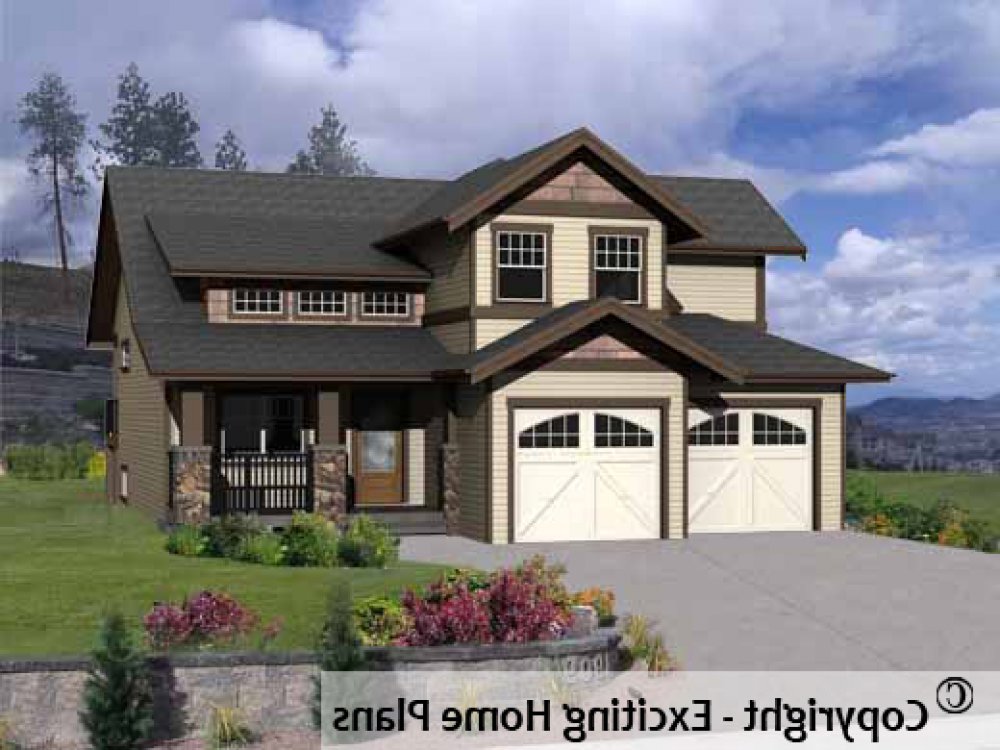

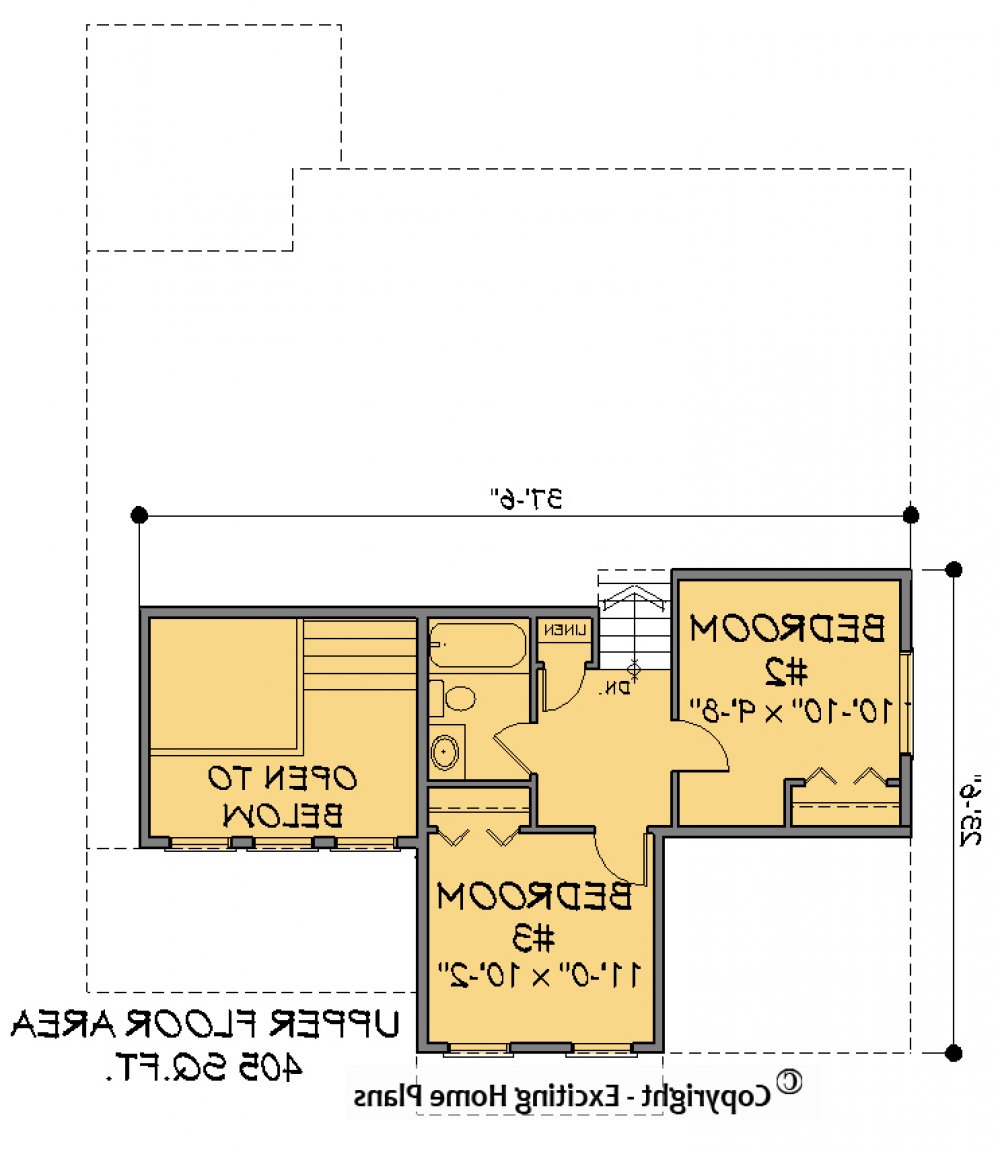

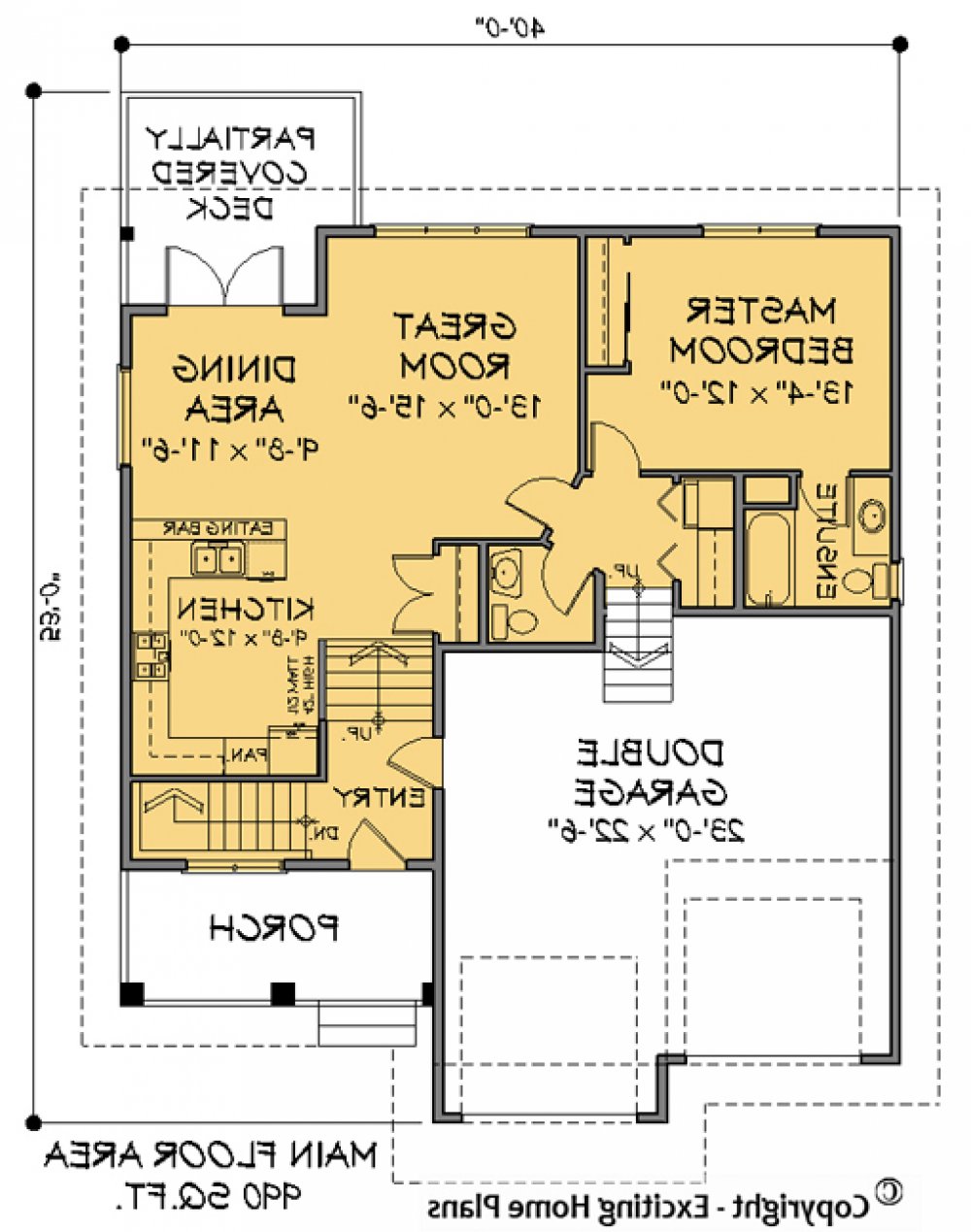

House Plan E1179-10 Exterior 3D View REVERSE House Plan E1179-10  Main Floor Plan REVERSE House Plan E1179-10 Upper Floor Plan REVERSE House Plan E1179-10  Lower Floor Plan REVERSE House Plan E1179-10  Lower Floor Plan REVERSE



ORDER THIS HOUSE PLAN   RELATED HOUSE PLANS

Floor Plan Details

  • Total Bedrooms:
  • 5
  • # of Bedrooms on Main Floor:
  • 1
  • # of Bedrooms on Upper Floor:
  • 2
  • Bathrooms:
  • 3
  • Half Bathrooms:
  • 1
  • Main Floor Sq Ft:
  • 990
  • Upper Floor Sq Ft:
  • 405
  • Basement Sq Ft:
  • 714
  • House Width (Ft):
  • 40
  • House Depth (Ft):
  • 53

Room Details

  • Great Room:
  • 13'-0 x 15'-6 Main
  • Kitchen:
  • 9'-8 x 12'-0 Main
  • Dining Room:
  • 9'-8 x 11'-6 Main
  • Family Room:
  • 12'-0 x 23'-0 Basement
  • Utility / Storage Room:
  • 11'-6 X 7'-10 Basement
  • Deck / Patio 1:
  • 11'-8 X 10'-8
  • Master Bedroom:
  • 13'-4 x 12'-0 Main
  • Bedroom 2:
  • 10'-10 x 9'-8 Upper
  • Bedroom 3:
  • 11'-0 x 10'-2 Upper
  • Bedroom 4:
  • 10'-4 x 10'-0 Basement
  • Bedroom 5:
  • 10'-4 x 10'-0 Basement
  • All Bedrooms Have A Bathroom:
  • No
  • Master Bathroom:
  • 7'-6 x 6'-8 Main
  • Bathroom 2:
  • 5'-0 x 7'-11 Upper
  • Bathroom 3:
  • 10'-6 x 5'-8 Basement

Kitchen Options

  • Eating Bar:
  • Yes
  • Peninsula:
  • Yes

Living Style Options

  • Great Room Concept / Open Plan:
  • Yes

Interior Details

  • Great Living Room Fireplace:
  • Yes
  • Steam Room:
  • No
  • Skylight(s):
  • No
  • Hot Tub:
  • No
  • Sauna:
  • No

Master Bedroom Options

  • Pieces In Ensuite:
  • 3

Garage Options

  • Garage Size:
  • 23'-0 x 22'-6
  • Number of Vehicles:
  • 2
  • Front Load:
  • Yes

Ceiling Options

  • Main Floor Ceiling Height:
  • 8
  • Upper Floor Ceiling Height:
  • 8
  • Basement Ceiling Height:
  • 8

Lot Details

  • Flat Lot (Less Than 36" Slope):
  • Yes
  • View To Rear:
  • Yes

Construction Details

  • Framing Lumber:
  • 2x6
  • Roof:
  • Asphalt
  • Foundation:
  • In ground basement
  • Foundation:
  • Insulated Concrete Form (ICF)
  • Wall Finish:
  • Siding
  • Wall Finish:
  • Stone

Plan Permit Info

Plan Costs

  • Planbook 5 Print Sets 24x36 - ¼" Scale Copies:
  • $969.00

  • Planbook 8 Print Sets 24x36 - ¼" Scale Copies:
  • $1,089.00

  • Planbook purchase with PDF's:
  • $1,389.00
  • Extra 24x36 ¼" Scale Copies:
  • $40.00
  • Reverse Plan:
  • $299.00
  • Colour Rendering:
  • $79.00
  • 11" x 17" - 1/8" Scale Copy:
  • $20.00
  • Shipping within B.C.
  • $29.95
  • Shipping within Canada:
  • $50.00
  • Shipping to USA:
  • Please Ask For Quote
  • Shipping outside of North America:
  • Please Ask For Quote
  • Shipping Mounted Renderings:
  • Please Ask For Quote
